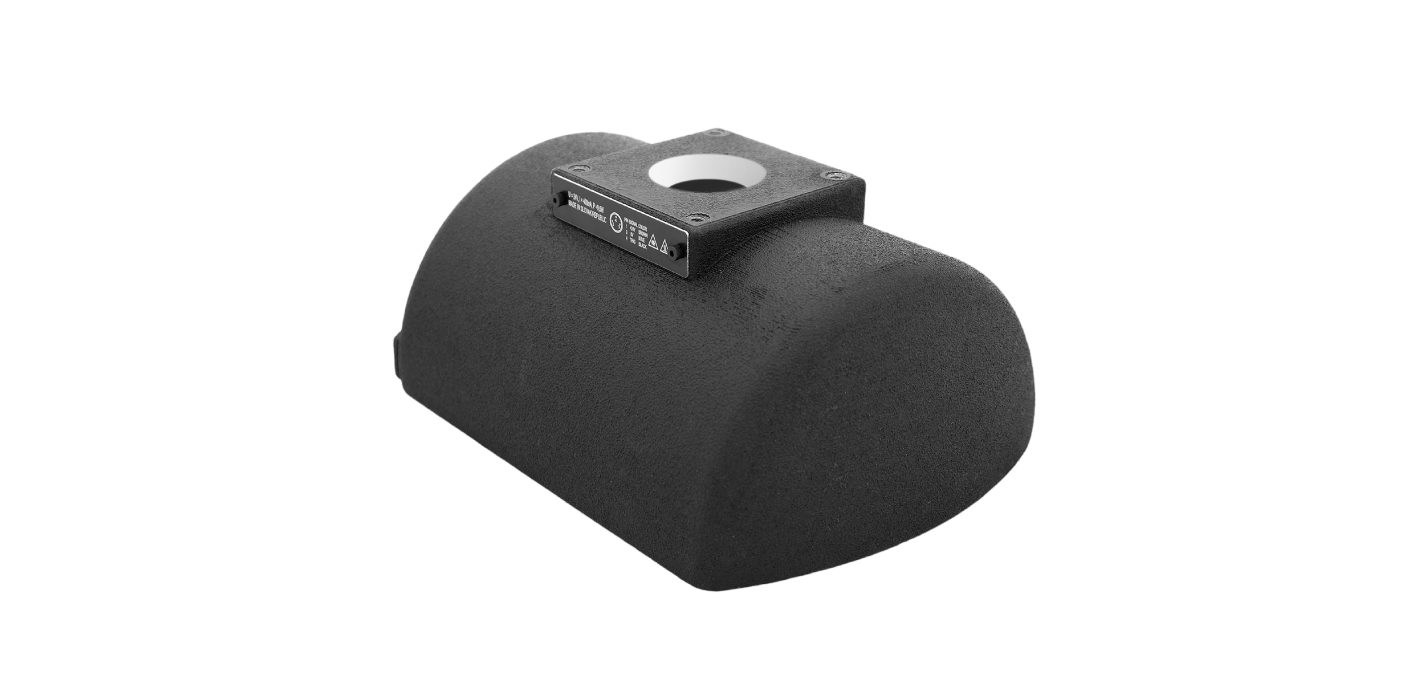

Dome Lights DLU

Ideal for indirect homogeneous illumination of curved surfaces or objects.

Compact design

Homogenous light field

Universal mounting

  • Dome lights are supplied in different wavelengths
  • Lighting intensity can be regulated by CM-01 Mini universal controller
  • Illumination of uneven surfaces and objects
  • Detection of cracks and surface defects
  • Illumination of reflex surface applications
  • DPM codes illumination on demanding surfaces

The principle of use

princip

Ordering code

DLU
Dome Light
90
active lighting area
B
wavelength

Configuration

Model series

active illumination area

wavelength

Datasheet

2D Drawings

3D Model

download download download

DLU-90W-HI

90 x 90

bílá

DLU-90R-HI

90 x 90

633 nm

DLU-90B-HI

90 x 90

470 nm

download download download

DLU-140W-HI

140 x 90

bílá

DLU-140R-HI

140 x 90

633 nm

DLU-140B-HI

140 x 90

470 nm

Basic electric parameters

Model

Md

Nominal Voltage

Ujm

Power consumption

P

DLU-90W-HI

24 V DC

5 W

DLU-90R-HI

24 V DC

2,5 W

DLU-90B-HI

24 V DC

4,5 W

DLU-140W-HI

24 V DC

7,5 W

DLU-140R-HI

24 V DC

4 W

DLU-140B-HI

24 V DC

7 W

Dimensions and weights

Model A délka [mm] B šířka [mm] C výška [mm] hmotnost [g]
DLU-90 134 118 69 157
DLU-140 180 118 69 210
rozmery
